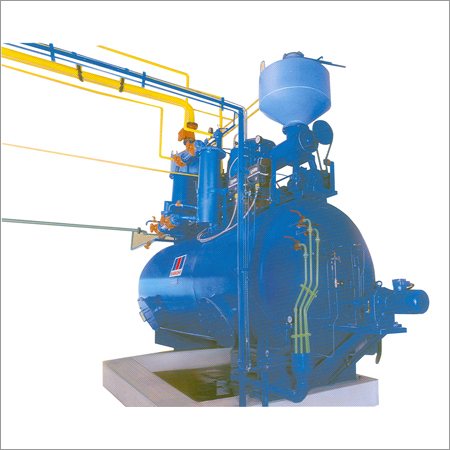

Acetylene Gas Plants

Acetylene Gas Plants
Acetylene Gas Plants
Product Code : 02
Brand Name : Sanghi Overseas
Product Description

Acetylene Gas Plants

The Acetylene Plants from Sanghi Organization are of indigenous manufacture. Every part has been carefully designed by experienced engineers. These parts are made of the best material. Every part has been accurately made and carefully inspected before assembly. Each unit, after assembly is charged and worked continuously to check its performance. You are, therefore, assured of an efficient and dependable acetylene plant.

TECHNICAL SPECIFICATION

Specifications

For 45cu.m/hr Acetylene Plant

For 100cu.m/hr Acetylene Plant

I

Capacity

45 cu.metre/hr of Acetylene

100 cu.metre/hr of Acetylene


Cylinders filled per batch

60 Cylinders

120 Cylinders


Carbide Size

4-50 mm

4-50 mm


Hopper Capacity

150 Kg

300 Kg


Carbide required per batch

1, 200 Kg approximately (depending on Carbide quality)

2, 700 Kg approximately (depending on Carbide quality)


Water required

10 ltrs. per kg of Calcium Carbide used

10 ltrs. per kg of Calcium Carbide used


Power requirement

18 KW

30 KW


Start up time

15 minutes

15 minutes

II

I.S. Specifications conforms to:
a) Acetylene Generator
b) Flame Proof Motors

IS 8471 - 1977
IS 2148 (Group II-B)-1968

IS 8471 - 1977
IS 2148 (Group II-B)-1968

III

Statutory requirement of distances as per Explosive Dept.

a) Acetylene Plant and Carbide godown should be:

9 metres form lime pits
15 metres from public road
15 metres from Electricity room
15 metres from any other building
90 metres from Oxygen Plant air intake point and 30 metres from Oxygen Plant Building.

a) Acetylene Plant and Carbide godown should be:

9 metres form lime pits
15 metres from public road
15 metres from Electricity room
15 metres from any other building
90 metres from Oxygen Plant air intake point and 30 metres from Oxygen Plant Building.



b) Acetone godown of 2,500 litres capacity should be 6 metres from any other premises

b) Acetone godown of 2,500 litres capacity should be 6 metres from any other premises

IV

Power Supply

440 Volts/3 phase/50 hertz
(if your supply is different from this please specify to enable us quote accordingly)

440 Volts/3 phase/50 hertz
(if your supply is different from this please specify to enable us quote accordingly)
